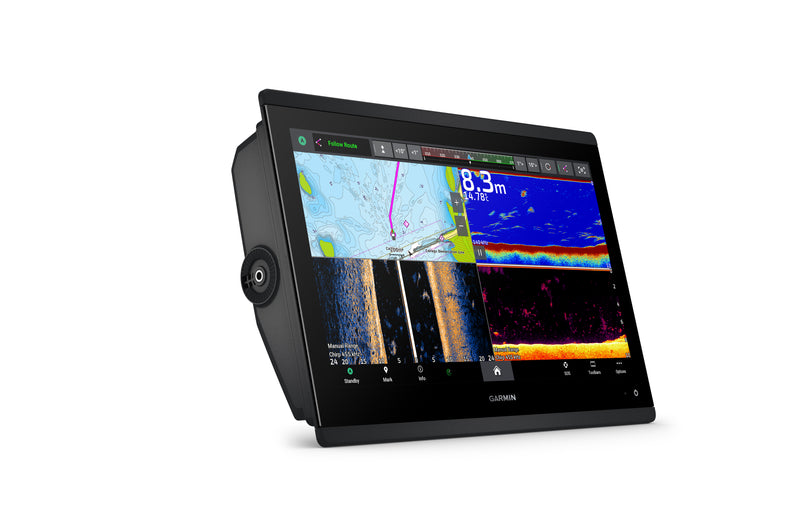

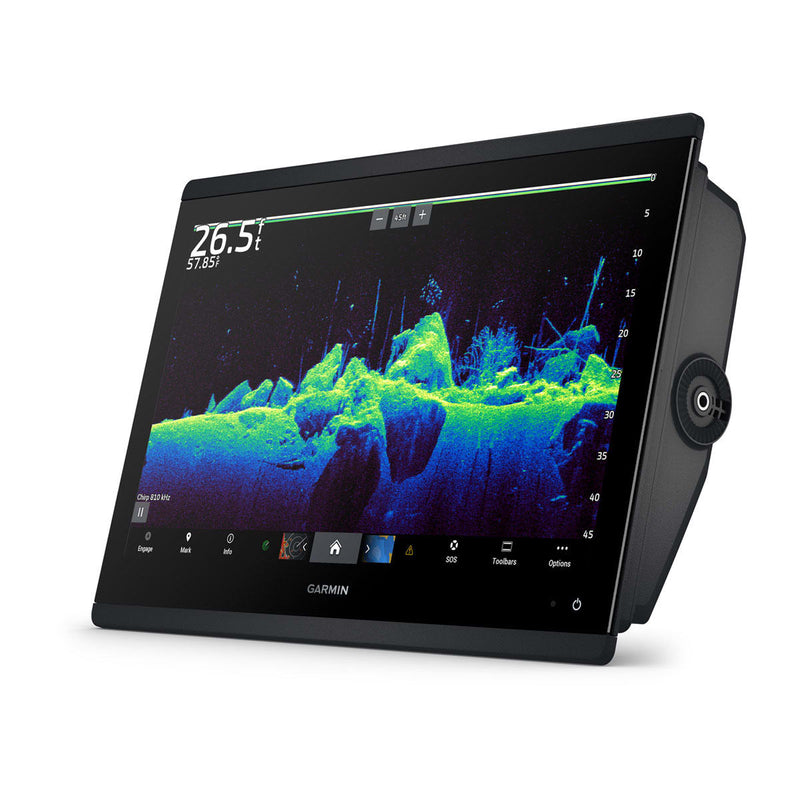

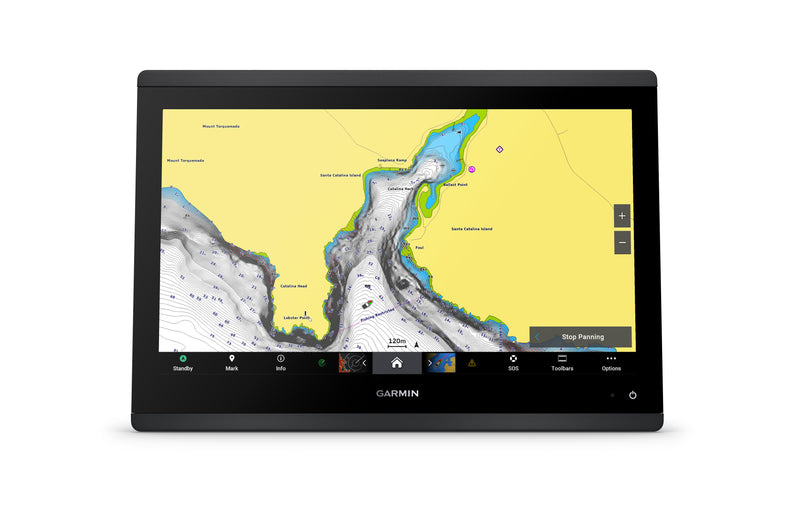

GPSMAP® 1643xsv

SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

PART NUMBER010-02919-03

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9”, 12” or 16” chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with digital switching and OneHelm™ integrations.

Easily build your marine system by using our advanced network connectivity.

Navigate any waters with preloaded Garmin Navionics+™ charts on select models.

See below your boat with built-in sonar capabilities on select models.

Manage your marine experience from nearly anywhere1.

SPECS:

General
Dimension 15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm)
Weight

9.7 lbs (4.4 kg)
Water rating

IPX7
Touchscreen Yes
Display Type FHD, IPS
Display Size 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
Display resolution 1920 x 1080 pixels
Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Input Touchscreen
Maps & Memory
Accepts Data Cards

2 microSD cards (back of device)
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100
Sensors
GPS Yes
GLONASS Yes
Galileo Yes
Has built-in receiver Yes
Receiver

10 Hz
NMEA 2000 Compatible Yes
NMEA 0183 Compatible Yes
Supports WAAS Yes
Built-in Maps
Built-in Auto Guidance+ Yes
Garmin Navionics+ Inland & Coastal Yes
Tide tables Yes
Optional Map Support
Garmin Navionics+™ Yes
Garmin Navionics Vision+™ Yes
TOPO 100K Yes
Standard Mapping Yes
Garmin Quickdraw Contours Yes
Raster chart support Yes
Chartplotter Features
Smart Mode Compatible Yes
AIS Yes
DSC Yes
Supports Fusion-Link™ compatible radios Yes
GSD Black Box Sonar Support Yes
GCV Black Box Sonar Support Yes
ActiveCaptain® compatible

yes
GRID (Garmin Remote Input Device) compatible Yes
Wireless Remote Compatible Yes
Sailing Features Yes
Spoken audio alerts Yes
OneHelm support Yes
Electrical Features
Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 3.61 A
Maximum current draw at 12 Vdc 6.07 A
Maximum power usage at 10 Vdc 74.75W
Sonar Features
Displays sonar Yes
Power output 1 kW
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)
ClearVü built-in 260/455/800/1000/1200 kHz
SideVü built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar Yes
LiveScope Yes
Connections
NMEA 2000® ports 1
NMEA 0183 Input (Rx) Ports

1
NMEA 0183 output (Tx) ports 1
Video input ports

1 (BNC composite)
Video output ports

1 HDMI
J1939 ports 1
Garmin Marine Network Ports

2
12-pin transducer ports 1
USB ports Yes
BLUETOOTH® pairing Yes
ANT+ (Connectivity) Yes
Garmin Wi-Fi network (local connection) Yes
